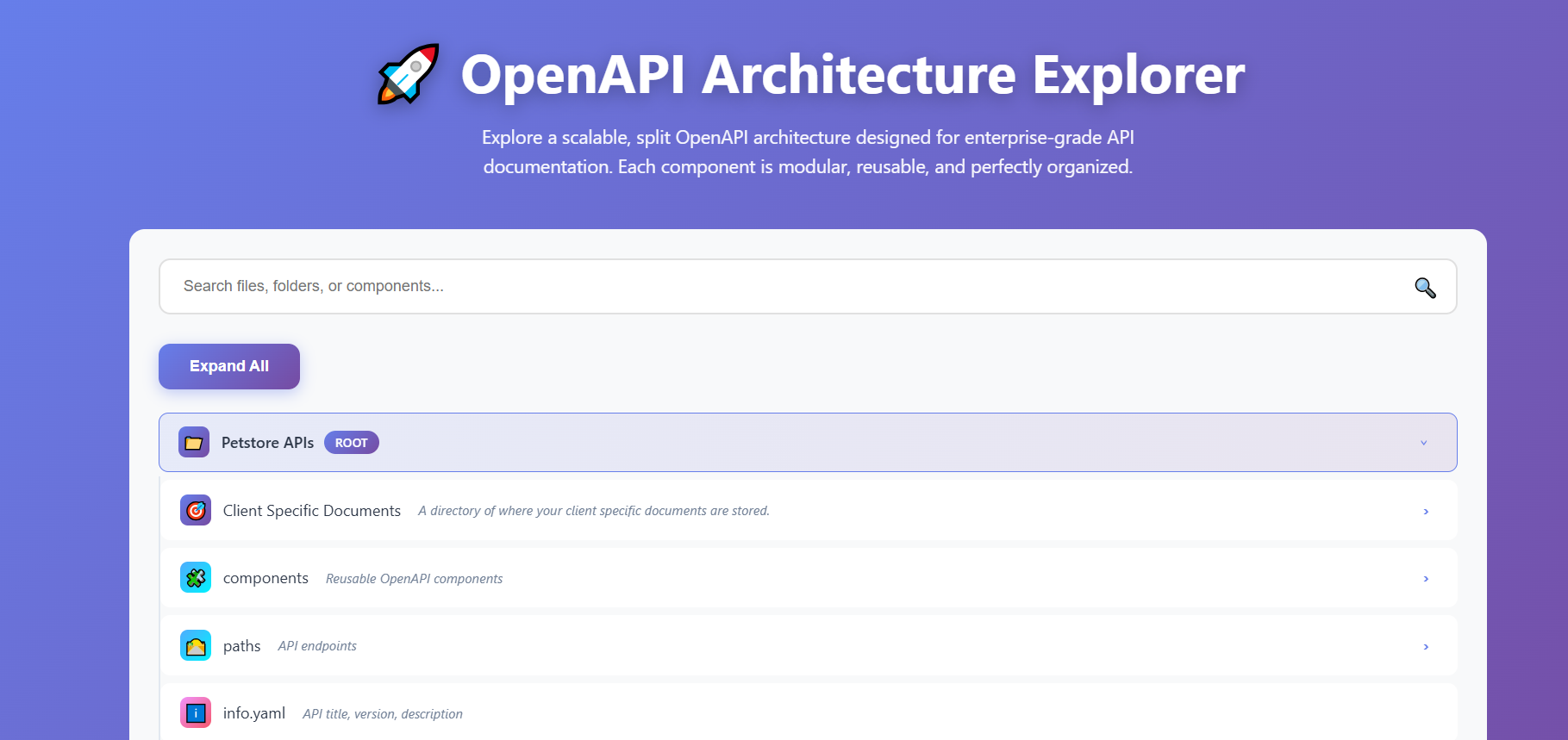

OpenAPI Architecture Explorer. — Steev Kundukulangara

OpenAPI architecture for scalable API documentation system

I have built a interactive web tool that visualizes and explores modular OpenAPI specifications.

OpenAPI Architecture

What I built:

Interactive tree viewer for navigating complex OpenAPI structures.
Content Preview with syntax highlighting.
Visual representation of modular architecture patterns.

Why it matters

Traditional monolthic OpenAPI files becomes hard to maintain as API grows. Based on client requirements, you may have to customize your API endpoints. This explorer demonstrates how you can split specs into reusable components, making them:

Modular - each component is self-contained and reusable.
Scalable - easy to add new endpoints without structural issues.
Enterprise ready - Organized structure suitable for large API projects.
Maintenable - Multiple teams can work on different files independently.

Key features

Split architecture visualization(schemas, paramters, examples, paths).
Components relationship via $ref references.
Best practices for organizing large specifications.

Root Level: Petstore APIs.

I have used Petstore API for demonstration purpose but this could be extended to any API specs, the structure remains the same.

Location: Root of the architecture
Icon: 📁
Badge: Root
Purpose: The top-level container that holds the entire API specification structure. This represents your complete API documentation project.

The “Petstore APIs” root acts as the parent directory for all components, paths, and configuration files. It serves as the organizational foundation for your entire OpenAPI specification ecosystem.

You should run the command from the directory containing the master OpenAPI file you want to convert into modular specifications.

## run from the directory with your master file.
redocly split OpenAPI.yaml --output /Petstore APIs

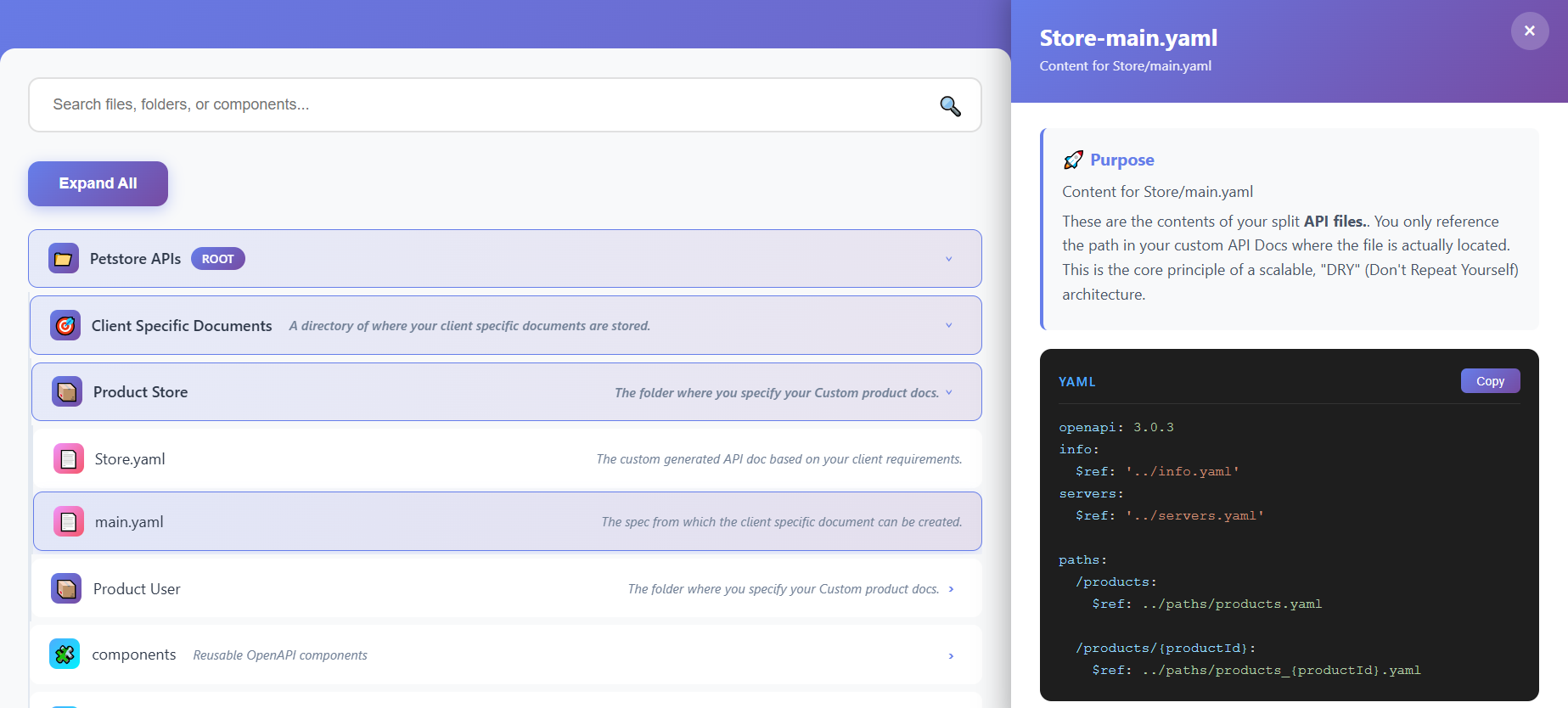

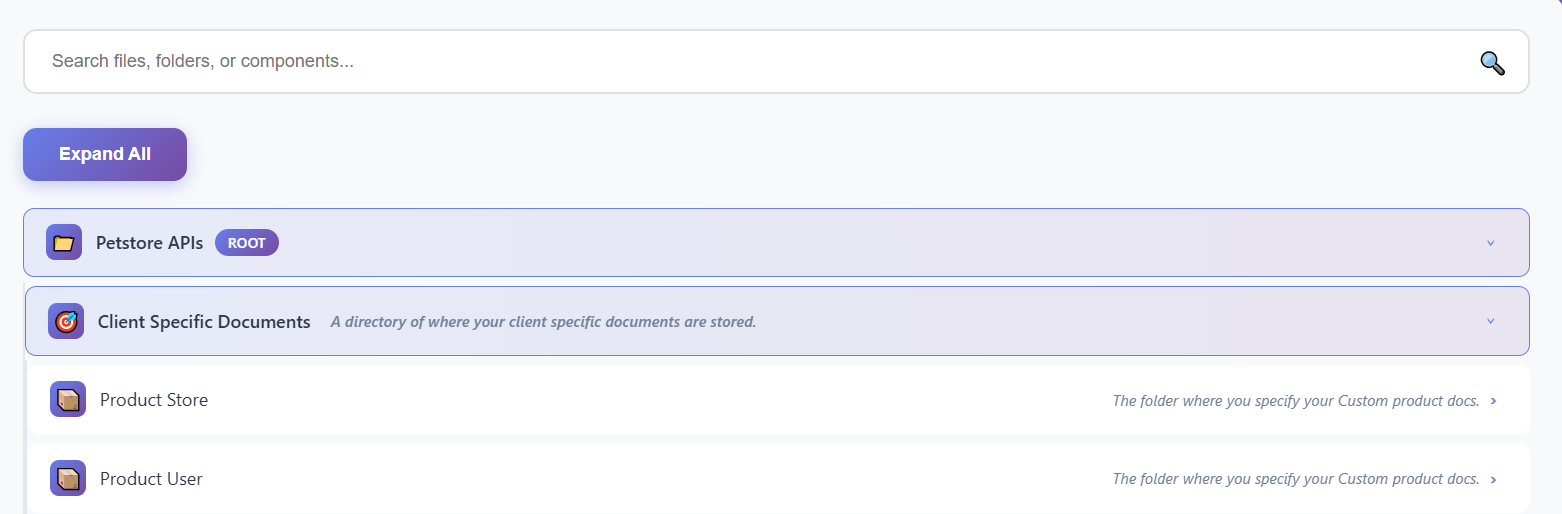

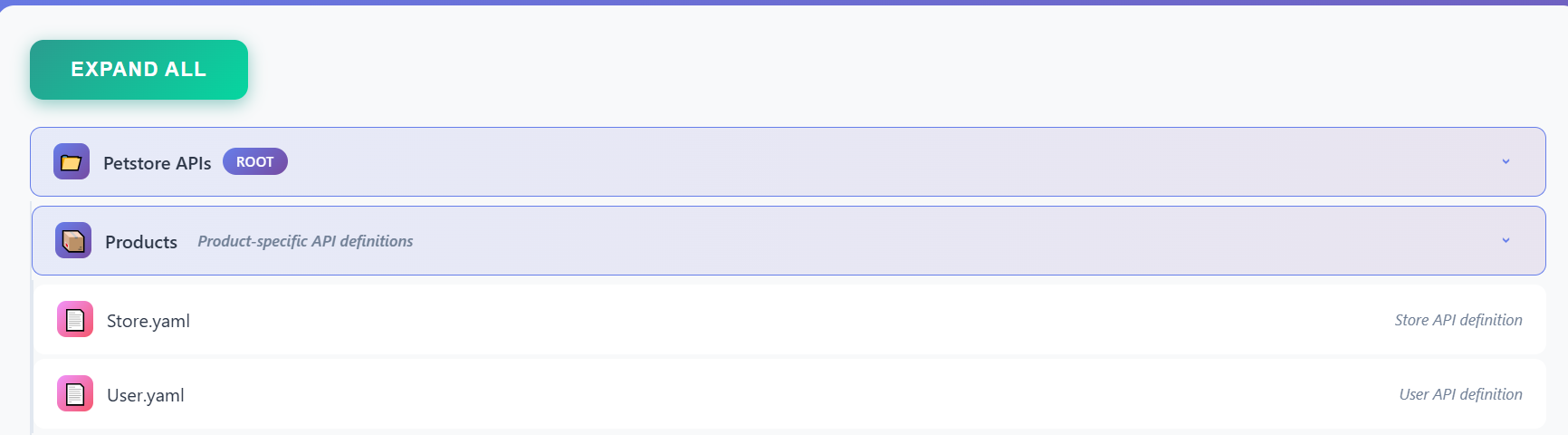

Products

Location: Petstore APIs > Products
Icon: 🎯
Purpose: The Products is where client-specific customizations are organized. This is where you create .yaml files with only paths(endpoints) that are relevant to the client.

Components

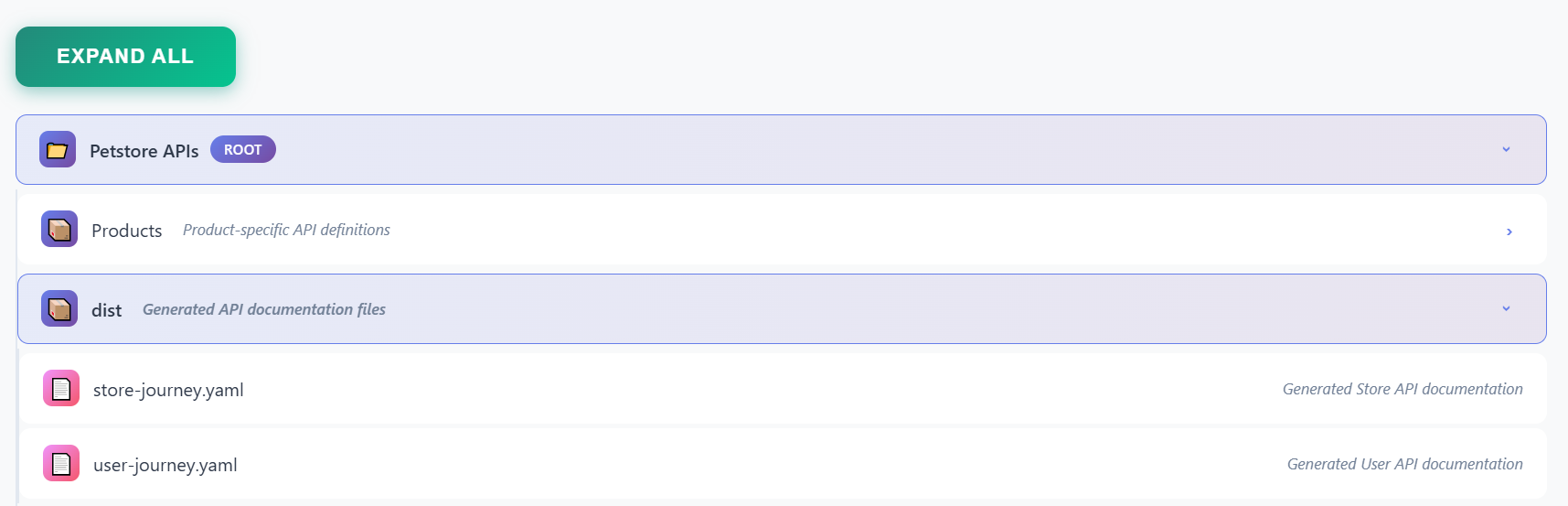

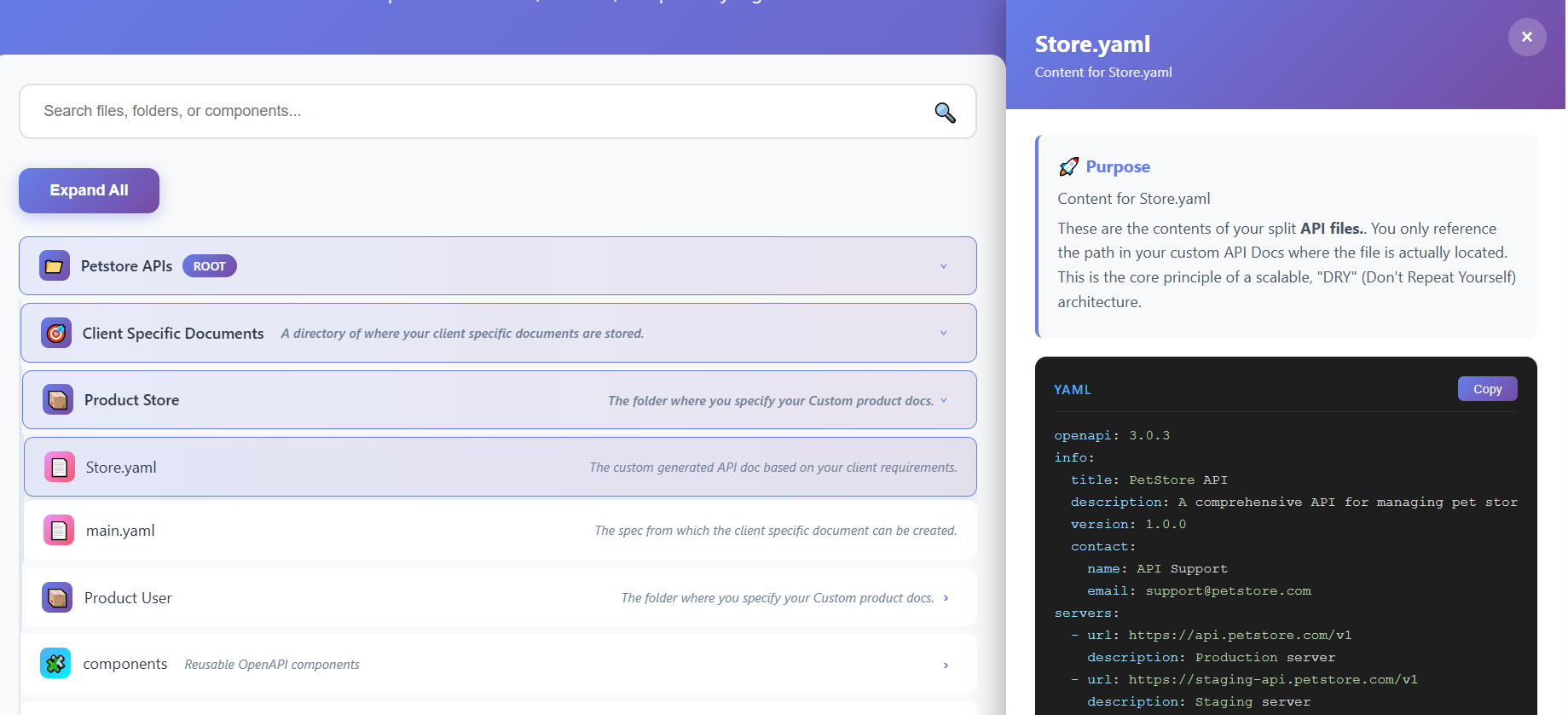

dist

Location: Petstore APIs > dist
Icon: 📄
Description: The custom generated API documentation based on your client requirements.

Components

The command to create this file is as follows:


redocly bundle ./Products/Store.yaml --outDir ./dist/store-journey.yaml

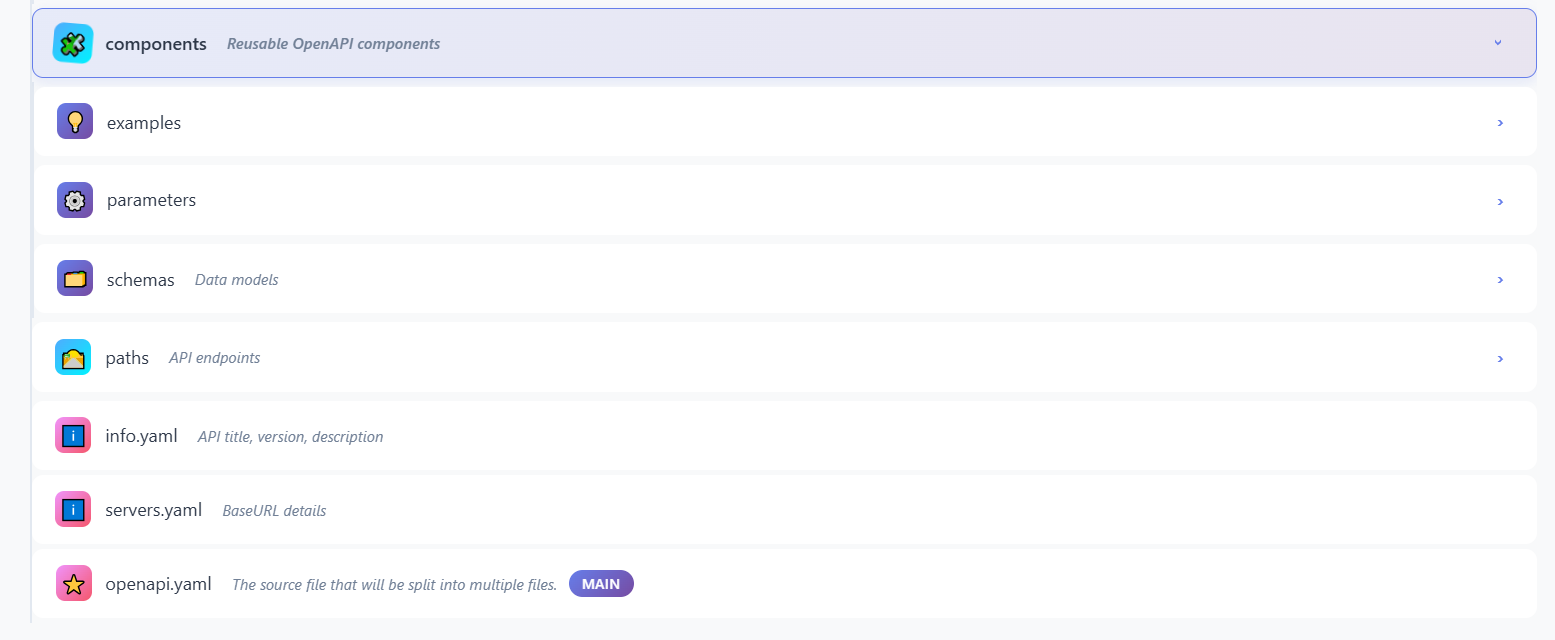

Level 1: Components Directory

Location: Petstore APIs > components
Icon: 🧩
Description: Reusable OpenAPI components

Purpose: The components directory is the heart of modular OpenAPI architecture. It contains all reusable elements that can be referenced across multiple endpoints and products using $ref.

Components

💡 Components > Examples

Location: Petstore APIs > components > examples
Icon: 💡
Purpose: Stores example request and response payloads that can be referenced throughout your API specification.

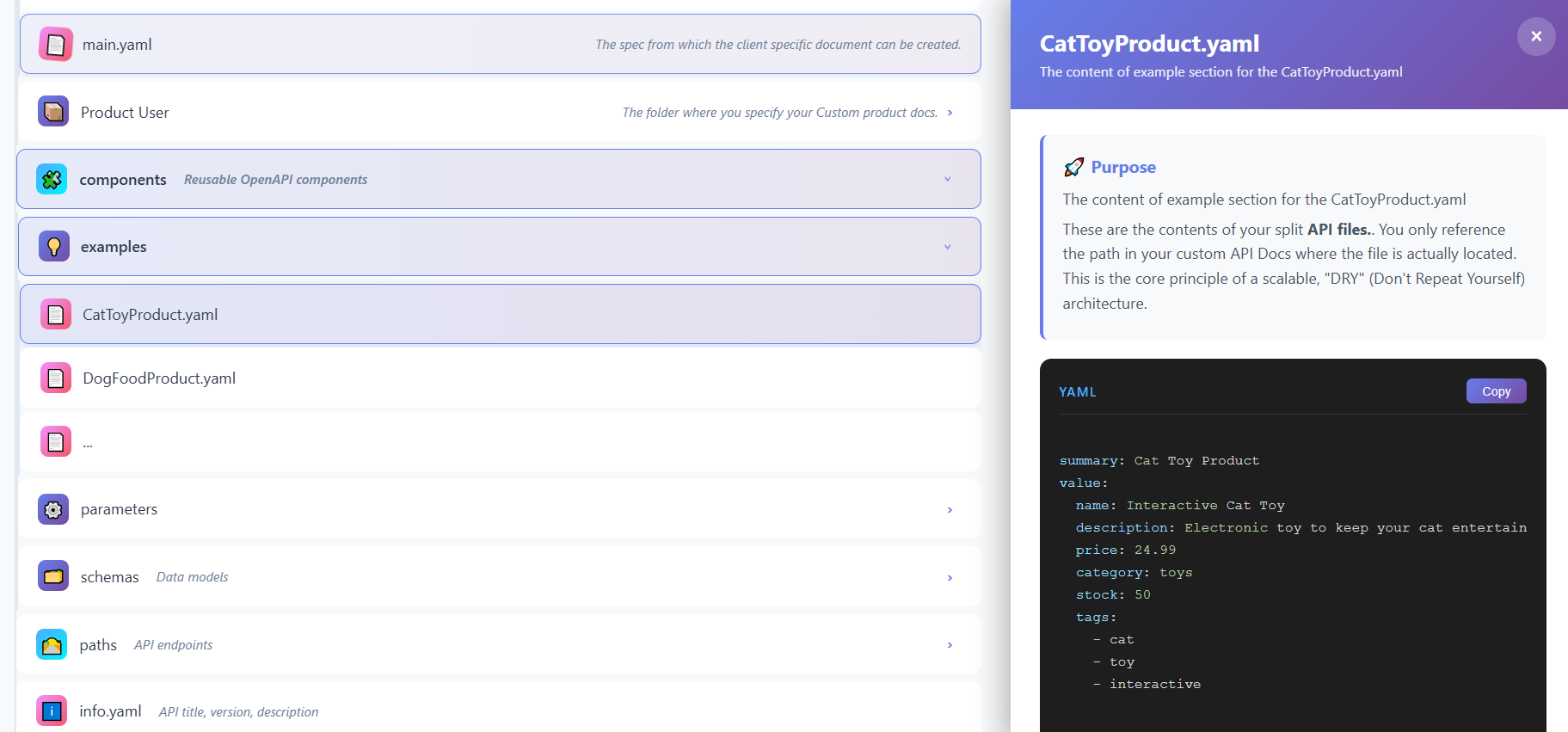

📄 CatToyProduct.yaml

Location: Petstore APIs > components > examples > CatToyProduct.yaml
Icon: 📄
Purpose: Example data for a cat toy product. The example file includes:

Product structure and properties
Expected data types and formats
Real-world example values

Examples

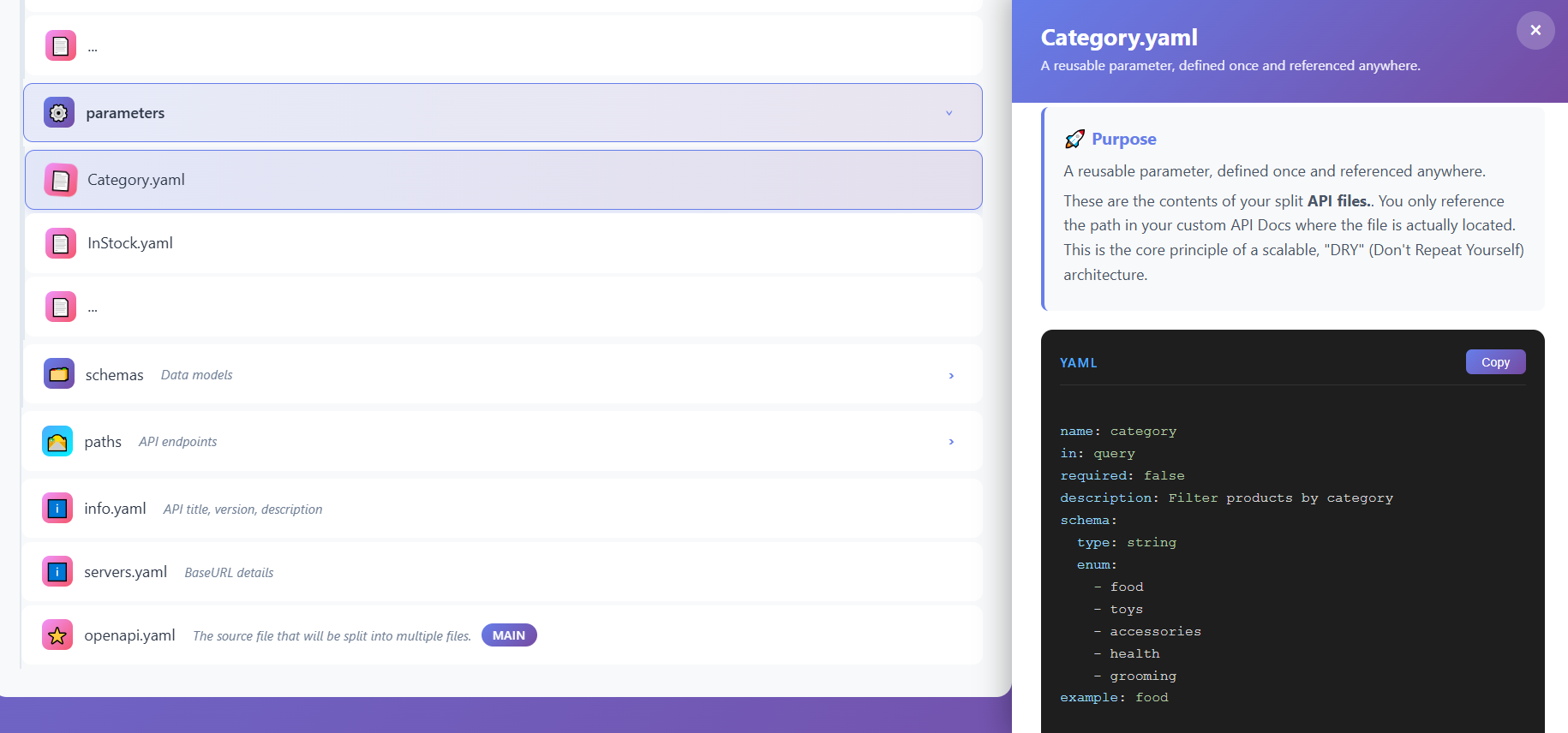

⚙️ Components > Parameters

Location: Petstore APIs > components > parameters
Icon: ⚙️
Purpose: Stores reusable parameter definitions that can be shared across multiple API endpoints.

Why Centralized Parameters:

Consistent parameter definitions across endpoints
Easy updates (change once, updates everywhere)
Reduces duplication and errors
Enables standardization

📄 InStock.yaml

Location: Petstore APIs > components > parameters > InStock.yaml
Icon: 📄
Purpose: Defines a parameter for filtering products by stock availability.

Parameters

🗂️ Components > Schemas

Location: Petstore APIs > components > schemas
Icon: 🗂️
Description: Data models
Purpose: Contains reusable data model definitions (schemas) that define the structure of request and response bodies.

Why Centralized Schemas:

Single source of truth for data structures
Ensures type consistency across the API
Makes updates easier and safer
Enables schema validation and code generation

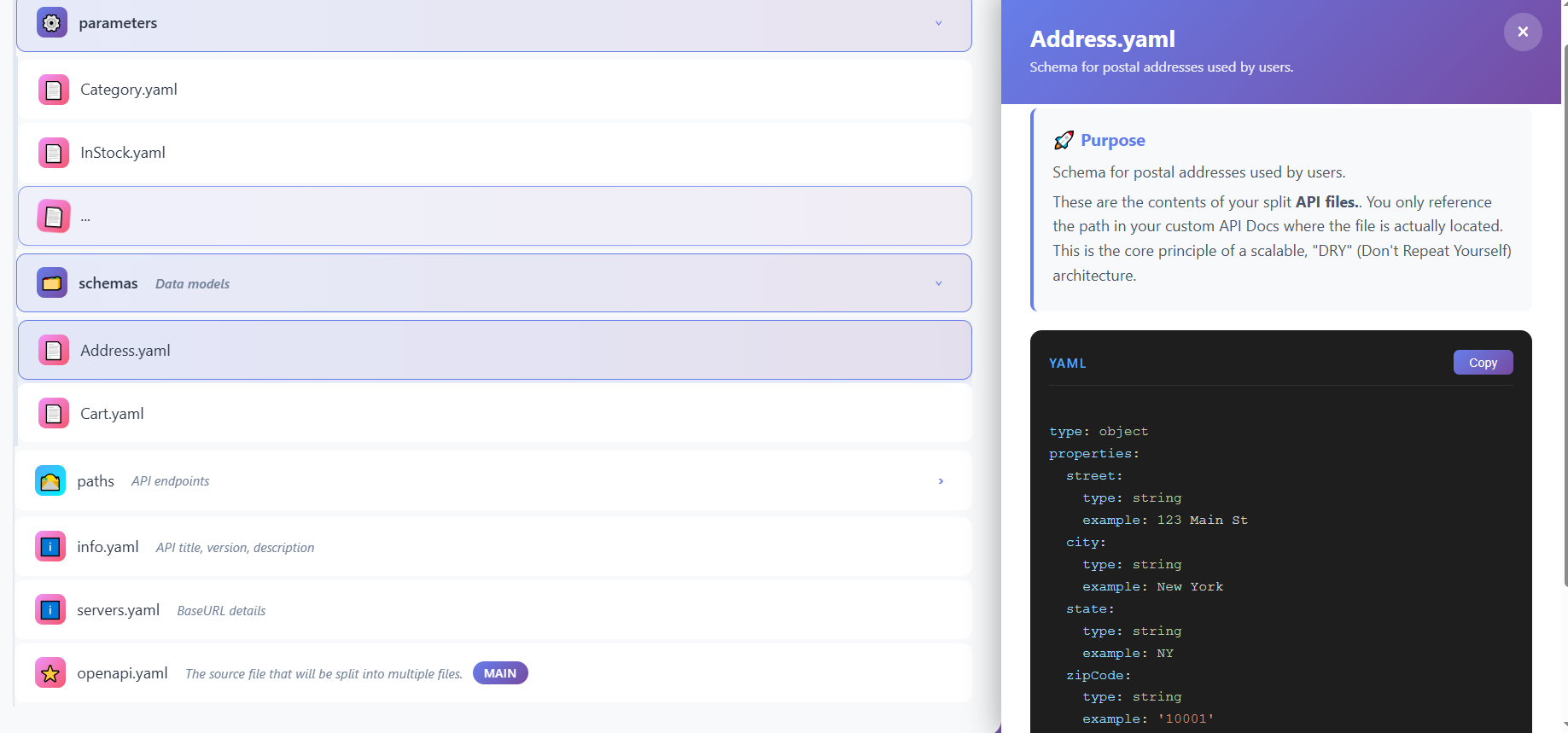

📄 Address.yaml

Location: Petstore APIs > components > schemas > Address.yaml
Icon: 📄
Purpose: Defines the actual schema.

Schemas

🛣️ Level 1: Paths Directory

Location: Petstore APIs > paths
Icon: 🛣️
Description: API endpoints

Purpose: The paths directory contains all API endpoint definitions. Each file typically represents one endpoint or a group of related endpoints.

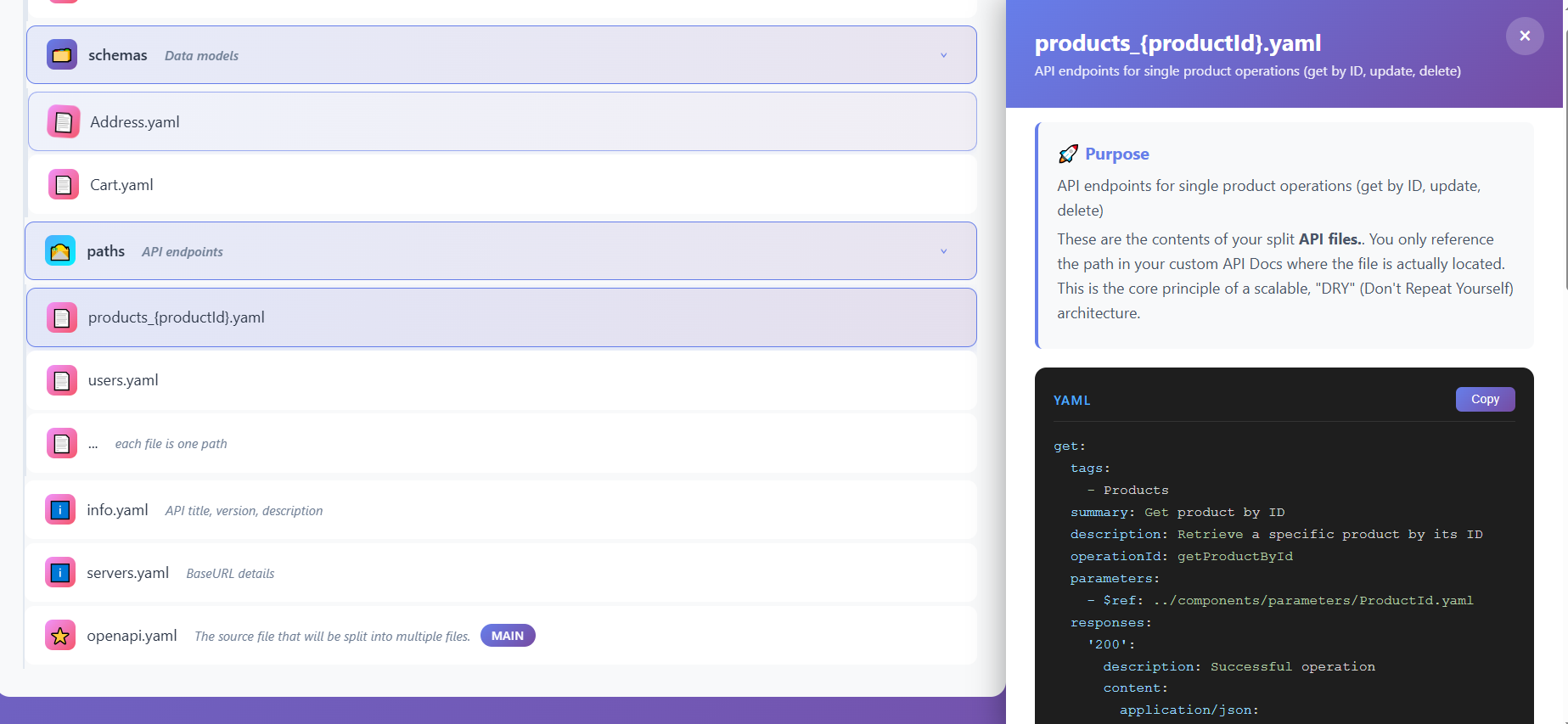

📄 products_{productId}.yaml

Location: Petstore APIs > paths > products_{productId}.yaml
Icon: 📄

paths

ℹ️ common

These files reside at the root level of the API specification and define essential metadata and configuration. These files are to be created manually as Redocly CLI doesn’t generate them.

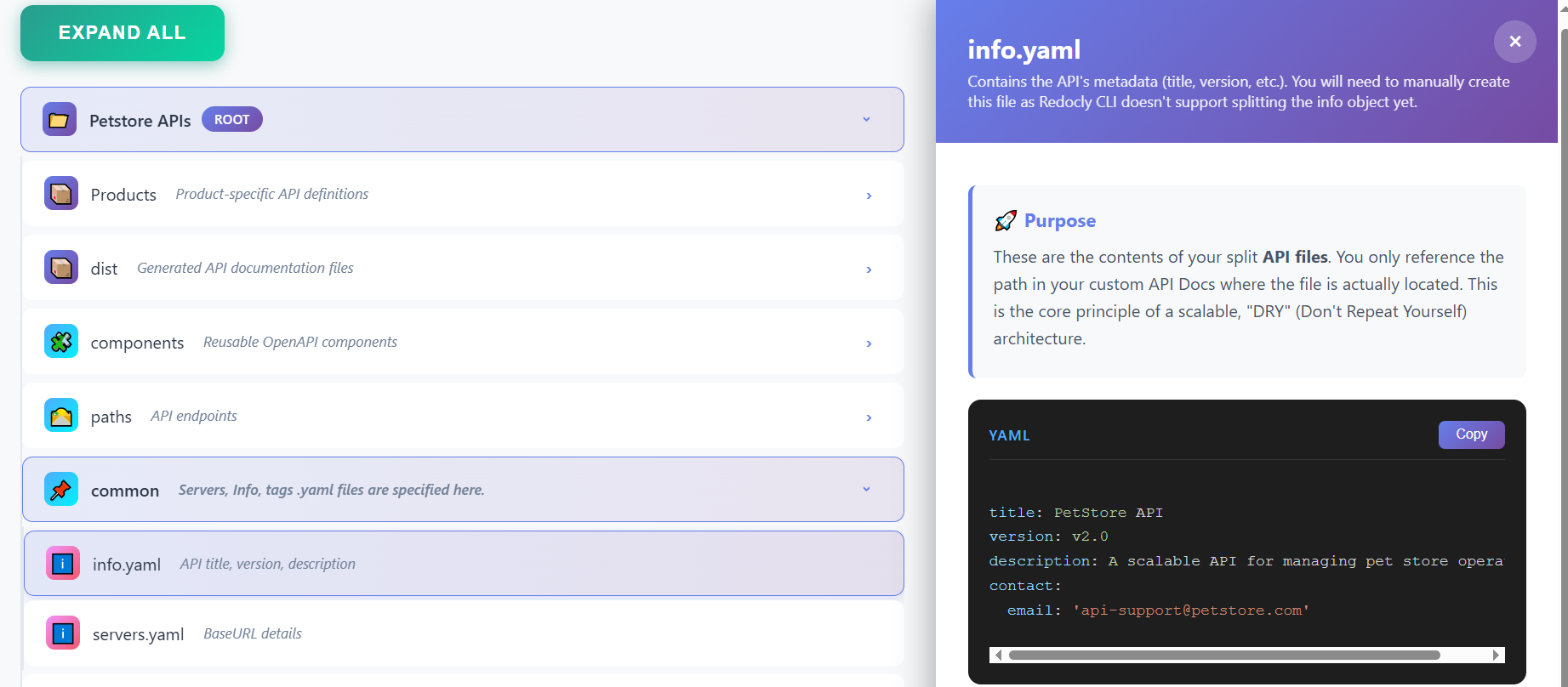

ℹ️ info.yaml

Location: Petstore APIs > common > info.yaml
Icon: ℹ️
Description: API title, version, description

Purpose: Contains essential API metadata that identifies and describes your API specification.

This file includes:

Title: The name of your API
Version: API specification version (e.g., “1.0.0”, “2.1.3”)
Description: High-level description of what the API does
Contact Information: Email, name, URL for API support
License: API licensing information
Terms of Service: Link to terms of service

Use Case: Referenced by the main openapi.yaml file to provide API-level information that appears in generated documentation and API portals.

Note

info.yaml has to created manually as Redocly does't create it.

Info

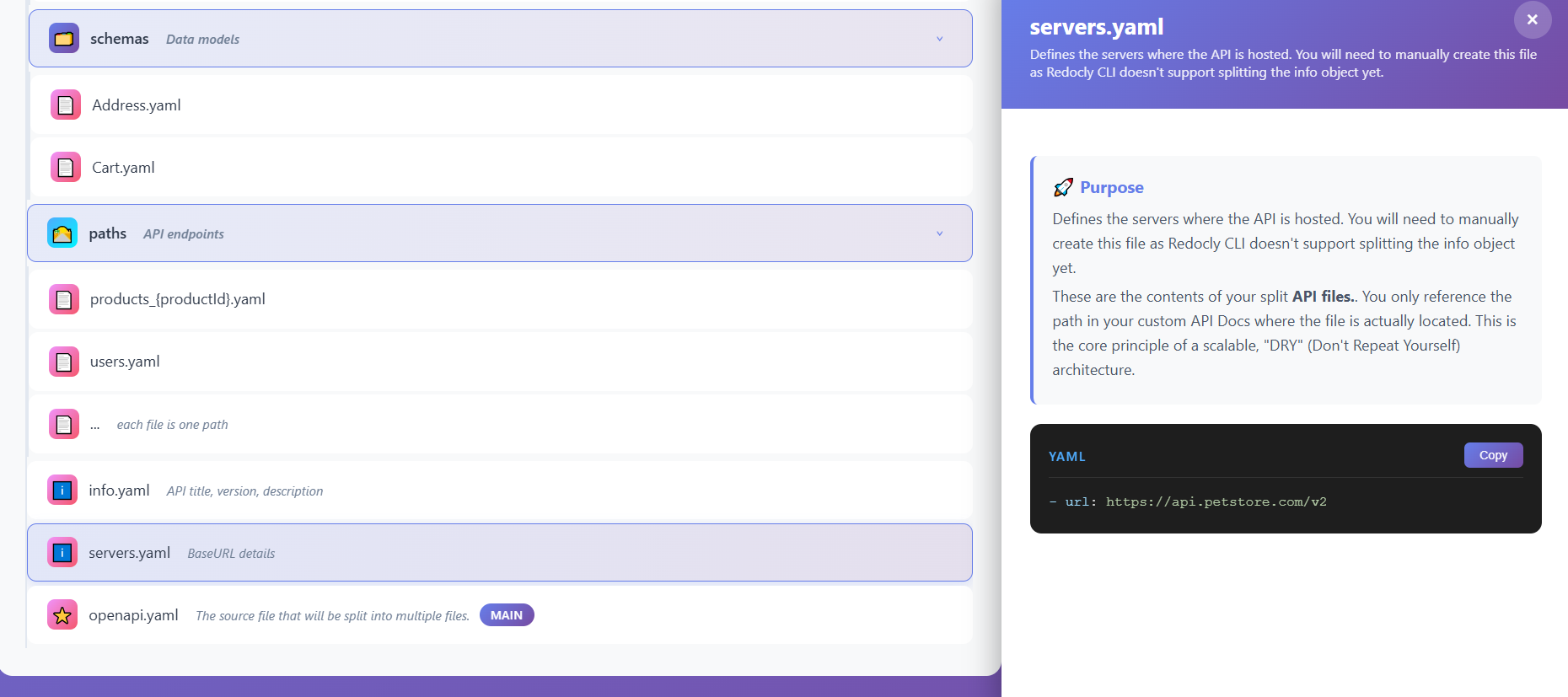

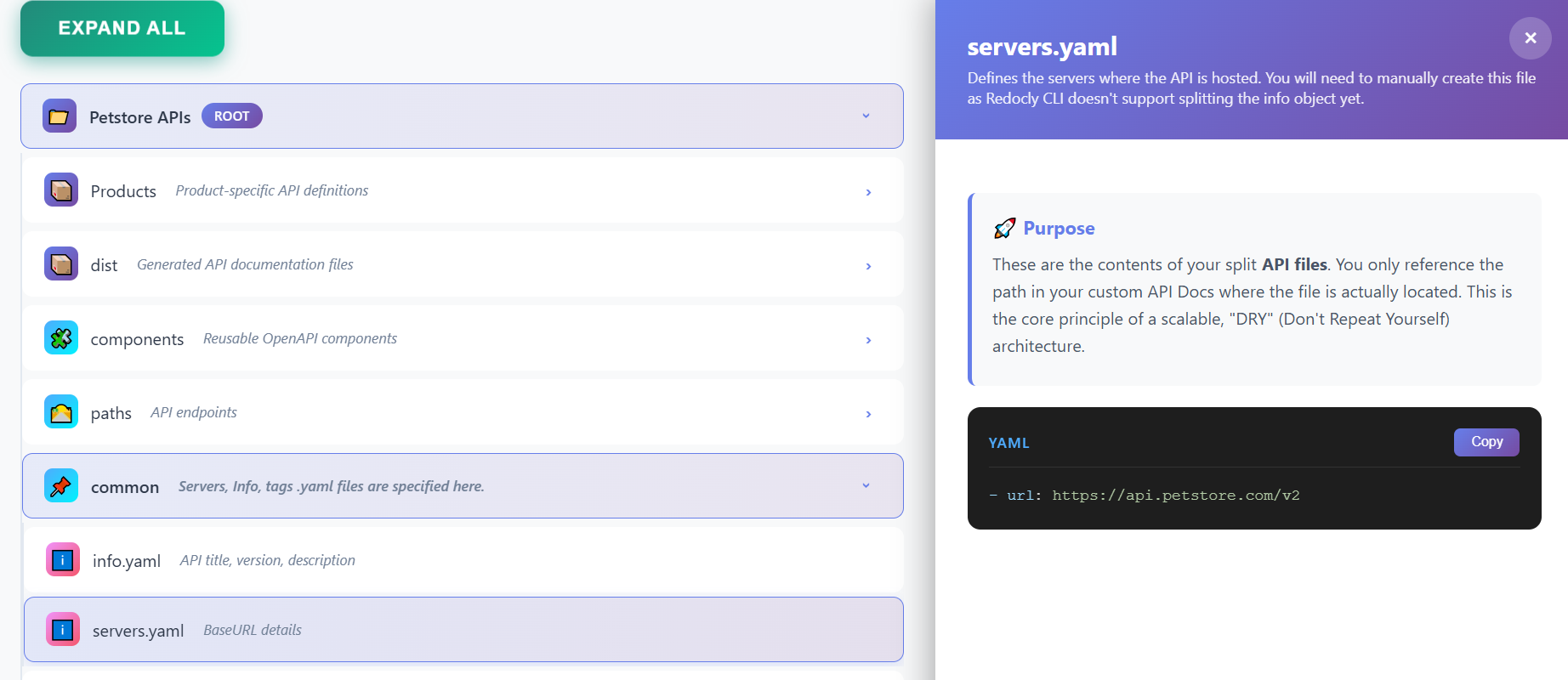

ℹ️ servers.yaml

Location: Petstore APIs > common > servers.yaml
Icon: ℹ️
Description: BaseURL details

Purpose: Defines the server environments and base URLs where the API is available. This file typically includes:

Production Server: https://api.example.com/v1
Staging Server: https://staging-api.example.com/v1
Development Server: https://dev-api.example.com/v1

Use Case: Referenced by the main openapi.yaml file to specify where the API is hosted. This information is used by API clients, testing tools, and documentation generators to know which server to connect to.

Note

servers.yaml has to created manually as Redocly does't create it.

Servers

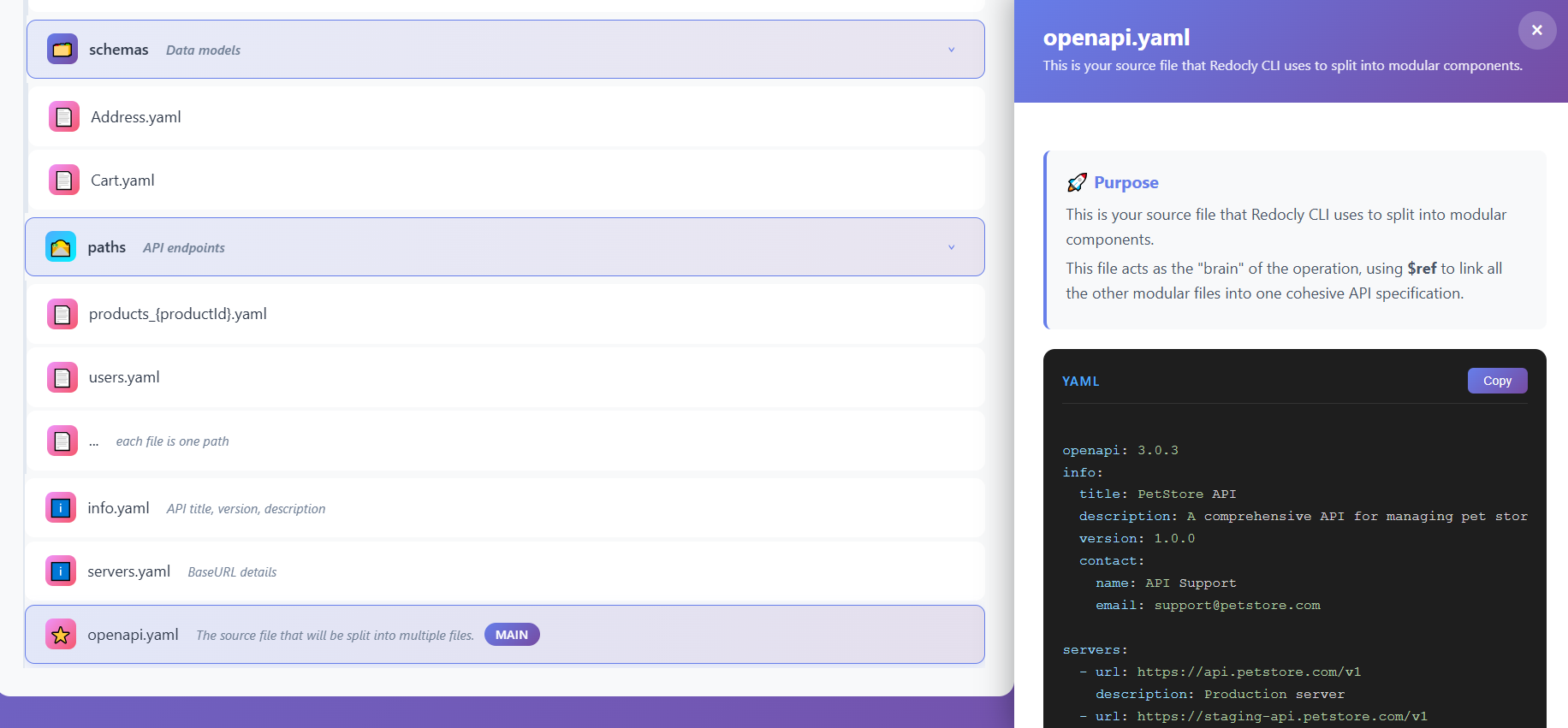

⭐ openapi.yaml

Location: Petstore APIs > openapi.yaml
Icon: ⭐
Badge: Main
Description: The source file that will be split into multiple files.

Purpose: This is the source file that Redocly CLI splits into multiple files and folders. This would act as your entry point.

openapi: 3.0.3
info:
  title: PetStore API
  description: A comprehensive API for managing pet store operations including products and users
  version: 1.0.0
  contact:
    name: API Support
    email: support@petstore.com

servers:
  - url: https://api.petstore.com/v1
    description: Production server
  - url: https://staging-api.petstore.com/v1
    description: Staging server

paths:
  /products:
    get:
      tags:
        - Products
      summary: Get all products
      description: Retrieve a list of all products with optional filtering and pagination
      operationId: getProducts
      parameters:
        - $ref: '#/components/parameters/Page'
        - $ref: '#/components/parameters/Limit'
        - $ref: '#/components/parameters/Category'
        - $ref: '#/components/parameters/InStock'
      responses:
        '200':
          description: Successful operation
          content:
            application/json:
              schema:
                type: object
                properties:
                  products:
                    type: array
                    items:
                      $ref: '#/components/schemas/Product'
                  total:
                    type: integer
                    example: 150
                  page:
                    type: integer
                    example: 1
                  limit:
                    type: integer
                    example: 10
        '500':
          $ref: '#/components/responses/InternalServerError'

    post:
      tags:
        - Products
      summary: Create a new product
      description: Add a new product to the store
      operationId: createProduct
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/ProductInput'
            examples:
              dogFood:
                $ref: '#/components/examples/DogFoodProduct'
              catToy:
                $ref: '#/components/examples/CatToyProduct'
      responses:
        '201':
          description: Product created successfully
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Product'
        '400':
          $ref: '#/components/responses/BadRequest'
        '500':
          $ref: '#/components/responses/InternalServerError'

  /products/{productId}:
    get:
      tags:
        - Products
      summary: Get product by ID
      description: Retrieve a specific product by its ID
      operationId: getProductById
      parameters:
        - $ref: '#/components/parameters/ProductId'
      responses:
        '200':
          description: Successful operation
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Product'
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

    put:
      tags:
        - Products
      summary: Update product
      description: Update an existing product
      operationId: updateProduct
      parameters:
        - $ref: '#/components/parameters/ProductId'
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/ProductInput'
            examples:
              updatedDogFood:
                $ref: '#/components/examples/UpdatedDogFood'
      responses:
        '200':
          description: Product updated successfully
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Product'
        '400':
          $ref: '#/components/responses/BadRequest'
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

    delete:
      tags:
        - Products
      summary: Delete product
      description: Remove a product from the store
      operationId: deleteProduct
      parameters:
        - $ref: '#/components/parameters/ProductId'
      responses:
        '204':
          description: Product deleted successfully
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

  /users:
    post:
      tags:
        - Users
      summary: Create a new user
      description: Register a new user in the system
      operationId: createUser
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/UserInput'
            examples:
              johnDoe:
                $ref: '#/components/examples/JohnDoeUser'
              janeSmith:
                $ref: '#/components/examples/JaneSmithUser'
      responses:
        '201':
          description: User created successfully
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/User'
        '400':
          $ref: '#/components/responses/BadRequest'
        '500':
          $ref: '#/components/responses/InternalServerError'

  /users/{userId}:
    get:
      tags:
        - Users
      summary: Get user by ID
      description: Retrieve a specific user by their ID
      operationId: getUserById
      parameters:
        - $ref: '#/components/parameters/UserId'
      responses:
        '200':
          description: Successful operation
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/User'
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

    put:
      tags:
        - Users
      summary: Update user
      description: Update an existing user's information
      operationId: updateUser
      parameters:
        - $ref: '#/components/parameters/UserId'
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/UserInput'
            examples:
              updatedJohnDoe:
                $ref: '#/components/examples/UpdatedJohnDoe'
      responses:
        '200':
          description: User updated successfully
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/User'
        '400':
          $ref: '#/components/responses/BadRequest'
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

    delete:
      tags:
        - Users
      summary: Delete user
      description: Remove a user from the system
      operationId: deleteUser
      parameters:
        - $ref: '#/components/parameters/UserId'
      responses:
        '204':
          description: User deleted successfully
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

  /users/{userId}/cart:
    get:
      tags:
        - Users
      summary: Get user cart
      description: Retrieve the shopping cart for a specific user
      operationId: getUserCart
      parameters:
        - $ref: '#/components/parameters/UserId'
      responses:
        '200':
          description: Successful operation
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Cart'
              examples:
                userCart:
                  $ref: '#/components/examples/UserCart'
        '404':
          $ref: '#/components/responses/NotFound'
        '500':
          $ref: '#/components/responses/InternalServerError'

components:
  schemas:
    Product:
      type: object
      required:
        - id
        - name
        - price
        - category
        - stock
      properties:
        id:
          type: string
          format: uuid
          example: "550e8400-e29b-41d4-a716-446655440000"
        name:
          type: string
          example: "Premium Dog Food"
        description:
          type: string
          example: "High-quality dog food with natural ingredients"
        price:
          type: number
          format: float
          minimum: 0
          example: 45.99
        category:
          type: string
          enum: [food, toys, accessories, health, grooming]
          example: food
        stock:
          type: integer
          minimum: 0
          example: 100
        tags:
          type: array
          items:
            type: string
          example: ["dog", "food", "premium"]
        createdAt:
          type: string
          format: date-time
          example: "2023-01-15T10:30:00Z"
        updatedAt:
          type: string
          format: date-time
          example: "2023-01-15T10:30:00Z"

    ProductInput:
      type: object
      required:
        - name
        - price
        - category
        - stock
      properties:
        name:
          type: string
          example: "Premium Dog Food"
        description:
          type: string
          example: "High-quality dog food with natural ingredients"
        price:
          type: number
          format: float
          minimum: 0
          example: 45.99
        category:
          type: string
          enum: [food, toys, accessories, health, grooming]
          example: food
        stock:
          type: integer
          minimum: 0
          example: 100
        tags:
          type: array
          items:
            type: string
          example: ["dog", "food", "premium"]

    User:
      type: object
      required:
        - id
        - username
        - email
        - firstName
        - lastName
      properties:
        id:
          type: string
          format: uuid
          example: "550e8400-e29b-41d4-a716-446655440001"
        username:
          type: string
          example: "johndoe"
        email:
          type: string
          format: email
          example: "john.doe@example.com"
        firstName:
          type: string
          example: "John"
        lastName:
          type: string
          example: "Doe"
        phone:
          type: string
          example: "+1234567890"
        address:
          $ref: '#/components/schemas/Address'
        createdAt:
          type: string
          format: date-time
          example: "2023-01-15T10:30:00Z"
        updatedAt:
          type: string
          format: date-time
          example: "2023-01-15T10:30:00Z"

    UserInput:
      type: object
      required:
        - username
        - email
        - firstName
        - lastName
      properties:
        username:
          type: string
          example: "johndoe"
        email:
          type: string
          format: email
          example: "john.doe@example.com"
        firstName:
          type: string
          example: "John"
        lastName:
          type: string
          example: "Doe"
        phone:
          type: string
          example: "+1234567890"
        address:
          $ref: '#/components/schemas/Address'

    Address:
      type: object
      properties:
        street:
          type: string
          example: "123 Main St"
        city:
          type: string
          example: "New York"
        state:
          type: string
          example: "NY"
        zipCode:
          type: string
          example: "10001"
        country:
          type: string
          example: "USA"

    Cart:
      type: object
      properties:
        userId:
          type: string
          format: uuid
          example: "550e8400-e29b-41d4-a716-446655440001"
        items:
          type: array
          items:
            type: object
            properties:
              productId:
                type: string
                format: uuid
                example: "550e8400-e29b-41d4-a716-446655440000"
              productName:
                type: string
                example: "Premium Dog Food"
              quantity:
                type: integer
                minimum: 1
                example: 2
              price:
                type: number
                format: float
                example: 45.99
        total:
          type: number
          format: float
          example: 91.98
        updatedAt:
          type: string
          format: date-time
          example: "2023-01-15T10:30:00Z"

  parameters:
    ProductId:
      name: productId
      in: path
      required: true
      description: Unique identifier of the product
      schema:
        type: string
        format: uuid
      example: "550e8400-e29b-41d4-a716-446655440000"

    UserId:
      name: userId
      in: path
      required: true
      description: Unique identifier of the user
      schema:
        type: string
        format: uuid
      example: "550e8400-e29b-41d4-a716-446655440001"

    Page:
      name: page
      in: query
      required: false
      description: Page number for pagination
      schema:
        type: integer
        minimum: 1
        default: 1
      example: 1

    Limit:
      name: limit
      in: query
      required: false
      description: Number of items per page
      schema:
        type: integer
        minimum: 1
        maximum: 100
        default: 10
      example: 10

    Category:
      name: category
      in: query
      required: false
      description: Filter products by category
      schema:
        type: string
        enum: [food, toys, accessories, health, grooming]
      example: food

    InStock:
      name: inStock
      in: query
      required: false
      description: Filter products that are in stock
      schema:
        type: boolean
      example: true

  examples:
    DogFoodProduct:
      summary: Dog Food Product
      value:
        name: "Premium Dog Food"
        description: "High-quality dog food with natural ingredients"
        price: 45.99
        category: "food"
        stock: 100
        tags: ["dog", "food", "premium"]

    CatToyProduct:
      summary: Cat Toy Product
      value:
        name: "Interactive Cat Toy"
        description: "Electronic toy to keep your cat entertained"
        price: 24.99
        category: "toys"
        stock: 50
        tags: ["cat", "toy", "interactive"]

    UpdatedDogFood:
      summary: Updated Dog Food Product
      value:
        name: "Premium Dog Food - Updated Formula"
        description: "Improved high-quality dog food with added vitamins"
        price: 49.99
        category: "food"
        stock: 150
        tags: ["dog", "food", "premium", "vitamins"]

    JohnDoeUser:
      summary: John Doe User
      value:
        username: "johndoe"
        email: "john.doe@example.com"
        firstName: "John"
        lastName: "Doe"
        phone: "+1234567890"
        address:
          street: "123 Main St"
          city: "New York"
          state: "NY"
          zipCode: "10001"
          country: "USA"

    JaneSmithUser:
      summary: Jane Smith User
      value:
        username: "janesmith"
        email: "jane.smith@example.com"
        firstName: "Jane"
        lastName: "Smith"
        phone: "+0987654321"
        address:
          street: "456 Oak Ave"
          city: "Los Angeles"
          state: "CA"
          zipCode: "90210"
          country: "USA"

    UpdatedJohnDoe:
      summary: Updated John Doe User
      value:
        username: "johndoe"
        email: "john.doe.updated@example.com"
        firstName: "John"
        lastName: "Doe"
        phone: "+1234567890"
        address:
          street: "789 Updated St"
          city: "Boston"
          state: "MA"
          zipCode: "02101"
          country: "USA"

    UserCart:
      summary: User Shopping Cart
      value:
        userId: "550e8400-e29b-41d4-a716-446655440001"
        items:
          - productId: "550e8400-e29b-41d4-a716-446655440000"
            productName: "Premium Dog Food"
            quantity: 2
            price: 45.99
          - productId: "550e8400-e29b-41d4-a716-446655440002"
            productName: "Interactive Cat Toy"
            quantity: 1
            price: 24.99
        total: 116.97
        updatedAt: "2023-01-15T10:30:00Z"

  responses:
    NotFound:
      description: The requested resource was not found
      content:
        application/json:
          schema:
            type: object
            properties:
              error:
                type: string
                example: "Resource not found"
              message:
                type: string
                example: "The requested product does not exist"
              code:
                type: integer
                example: 404

    BadRequest:
      description: Bad request - invalid input
      content:
        application/json:
          schema:
            type: object
            properties:
              error:
                type: string
                example: "Bad Request"
              message:
                type: string
                example: "Invalid input data"
              code:
                type: integer
                example: 400
              details:
                type: array
                items:
                  type: object
                  properties:
                    field:
                      type: string
                      example: "price"
                    message:
                      type: string
                      example: "Price must be a positive number"

    InternalServerError:
      description: Internal server error
      content:
        application/json:
          schema:
            type: object
            properties:
              error:
                type: string
                example: "Internal Server Error"
              message:
                type: string
                example: "An unexpected error occurred"
              code:
                type: integer
                example: 500

  securitySchemes:
    BearerAuth:
      type: http
      scheme: bearer
      bearerFormat: JWT

security:
  - BearerAuth: []

OpenApi

🎯 Architecture Benefits Summary

This modular architecture provides several key advantages:

Modularity: Each component is self-contained and reusable
Maintainability: Update components independently without affecting others
Scalability: Add new products, endpoints, or components easily
Collaboration: Multiple developers can work on different parts simultaneously
Reusability: Share schemas, parameters, and examples across endpoints
Organization: Clear structure makes navigation and understanding easier
Flexibility: Support multiple products and client customizations
Standards Compliance: Follows OpenAPI 3.0 best practices

📚 How to Use This Architecture

Start with openapi.yaml: This is your entry point
Define metadata: Set up info.yaml and servers.yaml
Create reusable components: Build schemas, parameters, and examples, paths in the components directory using Redocly CLI’s split command.
Customize for products: Use the dist directory to create product-specific variations.
Generate documentation: Use tools that read openapi.yaml to generate docs, test APIs, and create SDKs.

This architecture scales from small APIs to enterprise systems with hundreds of endpoints, multiple products, and various client requirements.
